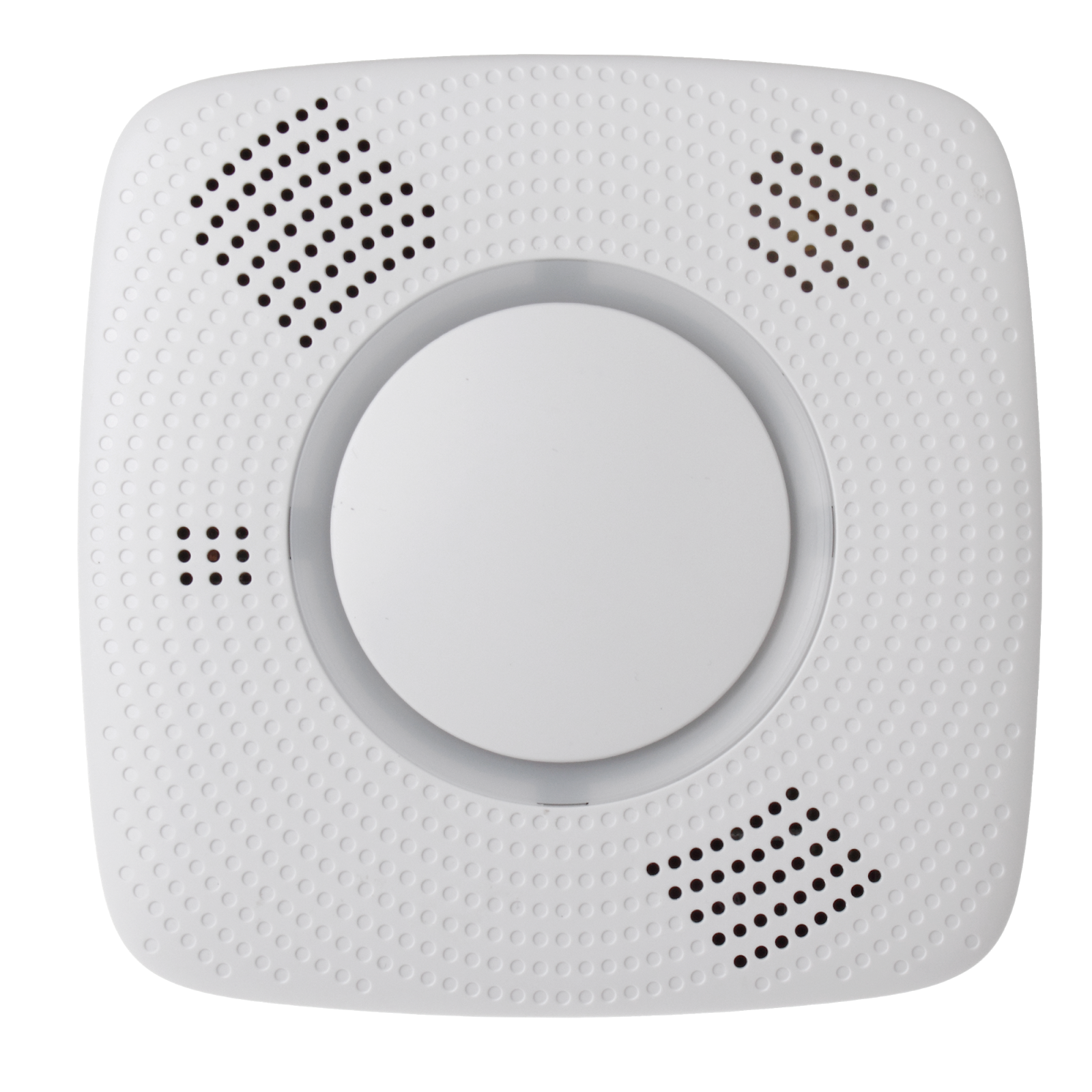

Futurehome SDCO fire alarm

Introduction

The SDCO is created to detect fire and carbon monoxide in your household. It is equipped with:

• sensors detecting temperature, humidity, heat, and carbon monoxide levels
• a siren to warn you in case of danger

Learn more about the fire alarm service here.

Note: The SDCO comes in two variants - battery and AC-powered.

Installation

1. The SDCO is designed to be mounted on a ceiling using the mounting bracket. See the product user manual attached at the end of this article. Note: The power to the AC-powered SDCO must be switched off during installation.
2. After the installation, connect the device to power:
   1. for an AC-powered device: turn on the main power switch
   2. for a battery-powered device: insert the batteries (3 x CR123)

Choosing a room on a device

1. After connecting the SDCO to the power, the voice messages will play.
2. Wait for the message: “To select location, press and hold the button now.”

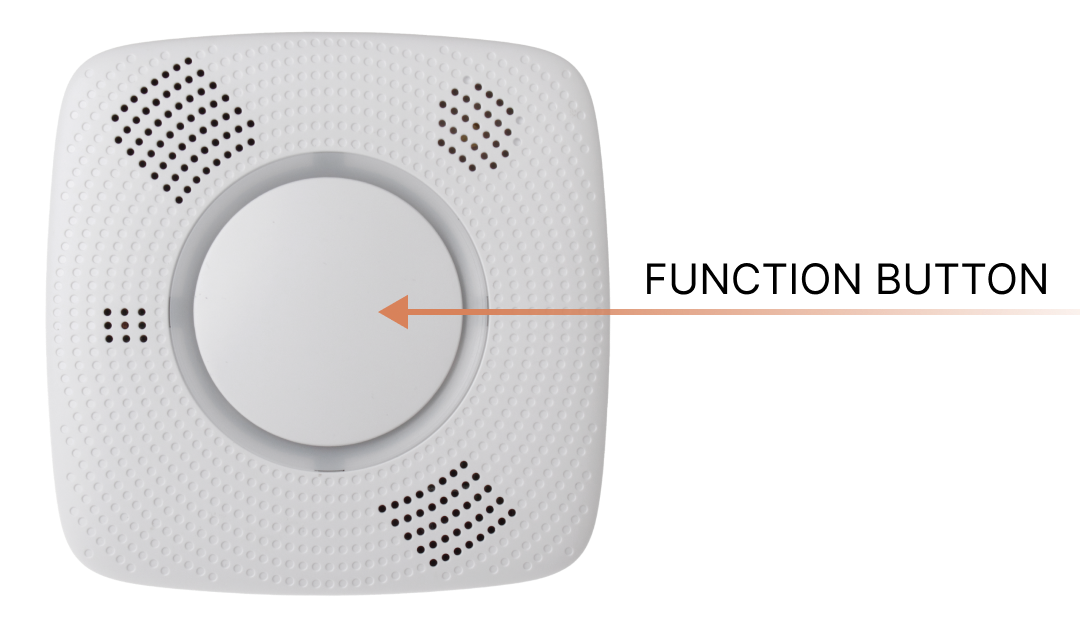

3. Press and hold the function button until the correct room is read out.
4. Releasing the function button chooses a room. A message: “Programmed” will play.

Inclusion

1. Open the Futurehome app, go to settings → devices → add a device → select Z-Wave. You can learn more about inclusion here.
2. Select "secure inclusion" and "include known devices faster" → start inclusion.



3. Press the SDCO’s function button 3 times within 1.5 seconds.
4. The device is now at the bottom of your device list → select it → settings → give it a name and a room.

Testing

1. Press the function button.
2. If the SDCO works properly, the red LED will blink once, followed by a two-tone beep.

Exclusion

1. Open the app, go to settings → devices → SDCO →  settings → navigate to the bottom and select delete.
2. Press the SDCO’s function button 3 times within 1.5 seconds.

Factory reset

1. Press and hold the function button for more than 20 seconds.
2. Release the button when you hear 3 beeps.

LED signals meaning

• Short flash	Sending signal
  Rapid flash	Incipient alarm
  Flashes every second	Silent alarm
  Flashes every 2 seconds	Warm-up/calibration in progress

• Flashes every second	Power on/Calibration failed
  Flashes every 5 seconds	Self-diagnosis failed (remove and reinsert batteries/power supply)
  Flashes every 45 seconds	Low battery (change batteries)

• Flashes every 4 seconds	Critical low battery (replace batteries immediately)
  Flashes every 5 seconds	Self-diagnosis failed (remove and reinsert batteries/power supply)
  Flashes every 45 seconds	Low battery (change batteries)

User manuals

• Futurehome SDCO AC User Manual.pdf300 KB
• Futurehome SDCO battery User Manual.pdf300 KB
