The dimmer must be installed by an authorised installer. The power on that circuit must always be off during installation.

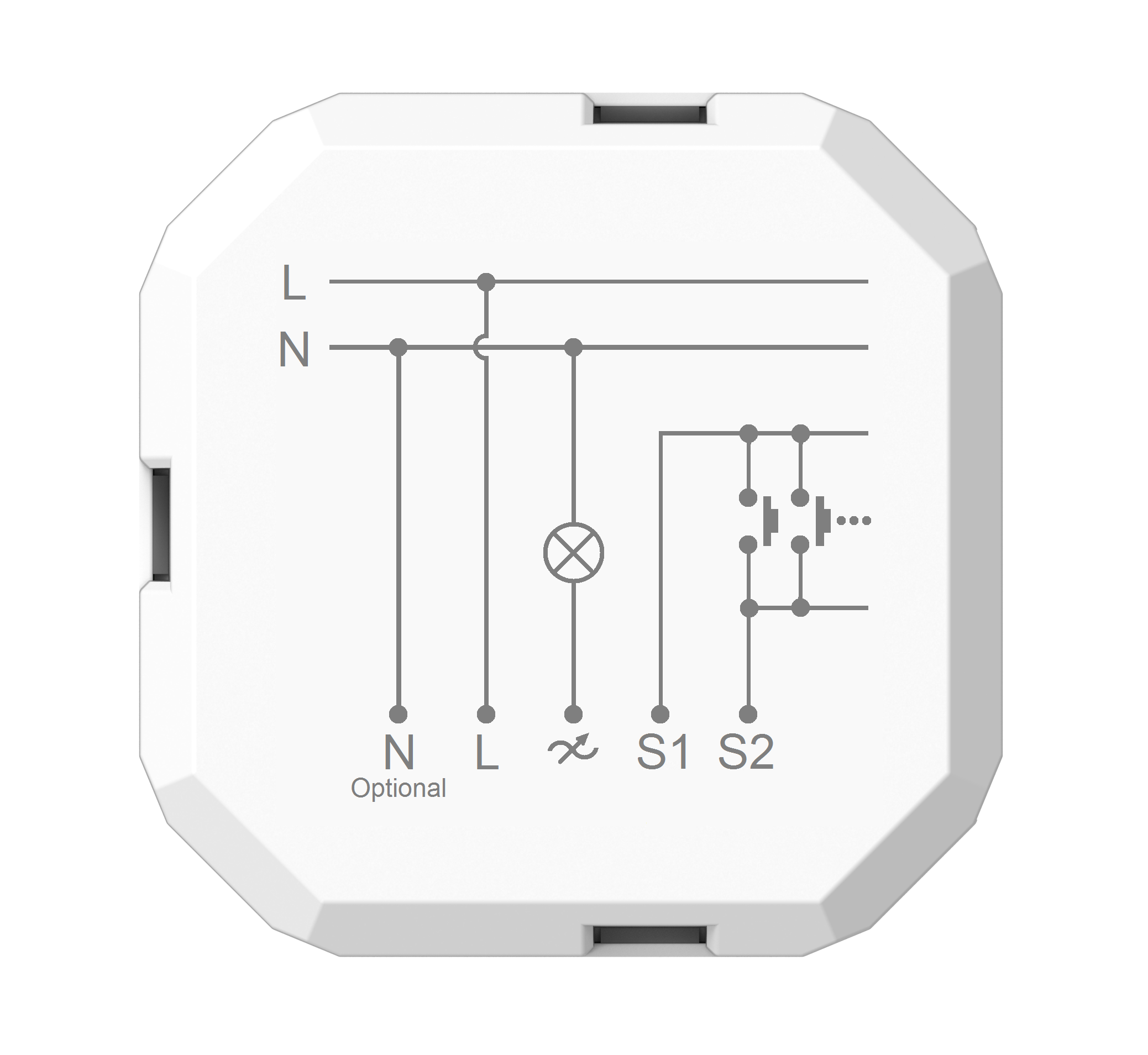

When the dimmer is connected according to the user manual, the dimmer can be included in the Futurehome Smarthub.
Inclusion
To add the device, the Smarthub must be put in inclusion mode.
- Open the app → settings → devices → add device → Zigbee → start

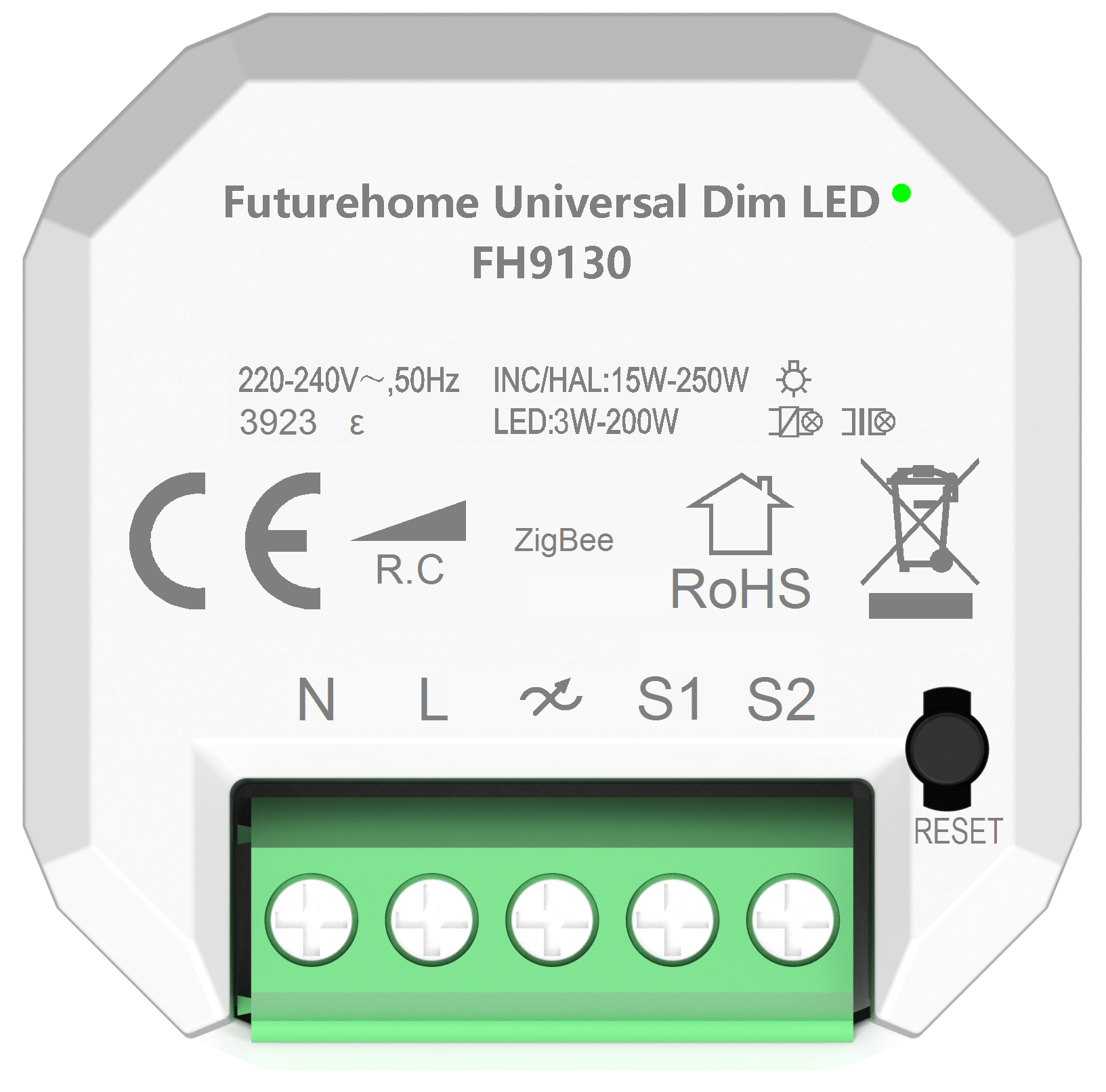

- Put the dimmer in inclusion mode by pressing the reset button on the dimmer or the connected switch rapidly 7 times.
- When the dimmer is found in the app, press "Ok, done!".
- The device is now at the bottom of your device list. Click on it → settings → give it a name, a function and a room.
Exclusion
To delete the device, go to the device list → press the dimmer → settings → delete.
Settings on the dimmer
| Clicks | Setting |
|---|---|
| 1 | Turn on and off the light |
| 2 | Turn on to maximum brightness |
| 5 | Set startup brightness |
| 6 | Set minimum brightness |
| 7 | Set dimmer in inclusion mode |
| 8 | Set maximum brightness |
| 9 | Reset min and max settings |
| 10 | Factory reset the device |
