Futurehome Low-profile Socket (white)

Introduction

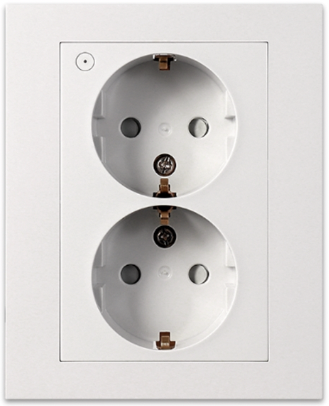

The Futurehome Smart Socket is a double schuko socket where one outlet can be controlled either wirelessly or with the push-button.
Note: This low-profile socket requires a 1.5 wall box.

Installation guide

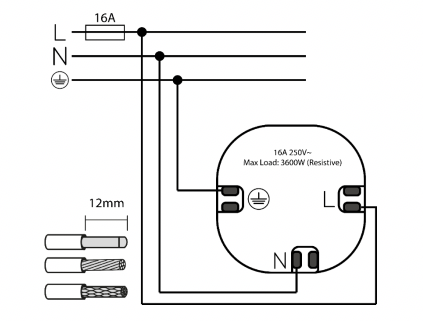

1. Install the socket according to the wiring diagram.

2. In the Futurehome app, go to settings → devices → add device → Zigbee → start.
3. Press and hold the button on the socket for 5 seconds. When you release, the button should flash blue.
4. When the app finds the device, press “Ok, done”
5. Click on the socket in the device list and then press “Settings”.
6. Give the socket a name, the correct function and place it in a room → save.

Reset

To reset the device, press and hold the pairing button on the device for 5 seconds.

Technical details

Documents

• Futurehome-Stikkontakt - datablad.pdf500 KB
