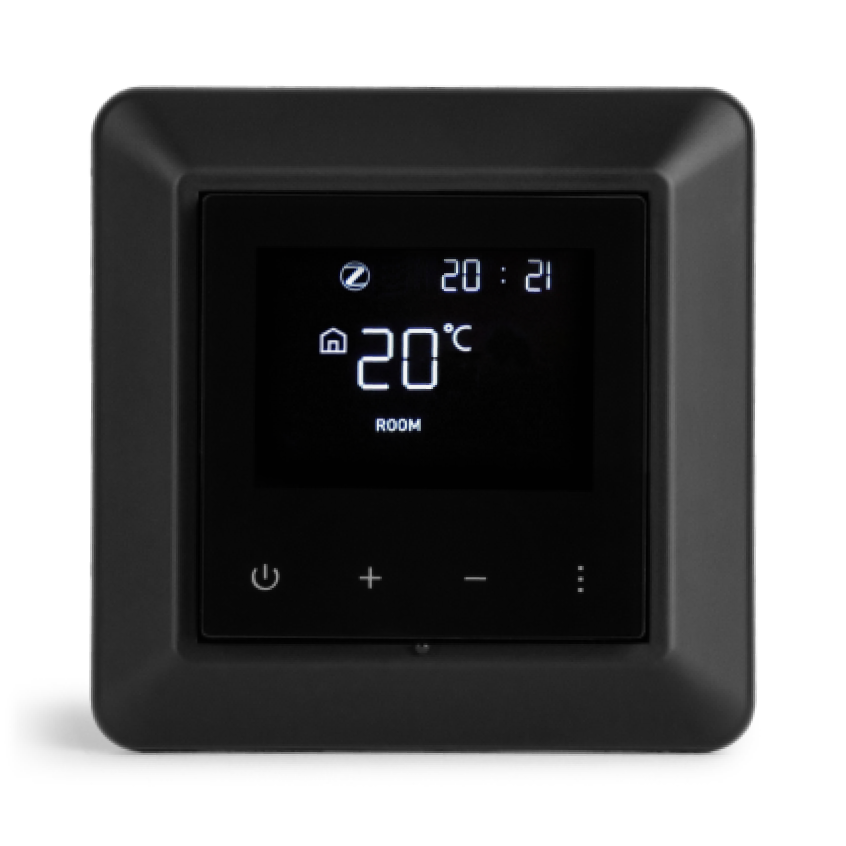

Futurehome Smart Thermostat (black)

Introduction

Futurehome Smart Thermostat is fitted to Norwegian, Swedish and Finnish wall boxes and installation systems, which makes it easy to switch from conventional thermostats to a smart solution.

It is compatible with 10, 12, 15 and 47 kOhm sensors and can withstand loads of 16A / 3600W.

This thermostat is not a power regulator. It needs to be installed inside the room or have a cabled sensor inside the room.

Installation guide

1. Install the thermostat according to the wiring diagram.

2. In the Futurehome app, go to settings → devices → add device → Zigbee → start.
3. Press and hold the minus button on the thermostat for 8 seconds. The Zigbee icon should start flashing on the thermostat display.
4. When the app finds the device, press “Ok, done”.
5. Click on the thermostat in the device list and then press settings.
6. Give the thermostat a name and place it in a room → save.

Configuration

Configure the right temperature sensor:

1. Press and hold (+) and (-) on the thermostat for 5 seconds.
2. Setting 1, displayed on the top, is the sensor selection.
   Press (+) or (-) to change sensor type, confirm with ⏻.
   Value 0: Internal sensor
   Value 1: Floor sensor

Additional information

Power measurement

The latest version of the thermostat has an internal power meter.

If you do not see the consumption automatically, it means you have the first version without a power meter:

1. Go to settings → devices → thermostat → additional functions → enter W.
   Enter the value in W, not kW. Example: 1800, not 1.8.

Channels

In the app, the thermostat has two channels:

• channel 1: contains the thermostat and the selected sensor
• channel 2: contains the sensor that is not selected

You can learn more about channels here.

Advanced settings

1. Open the menu:
   Hold (+) and (-) together for 5 seconds. In the menu, the numbers displayed on the top represent each setting.
2. Edit the setting:
   Press (...) → change the value of the setting with (+) and (-) → save with the power button ⏻.

• Setting number	Setting name	Available values	Default value
  1.	Sensor type	0: internal room sensor 1: floor sensor 2: max guard*	0
  2.	Floor sensor type	0: 10 kOhm (supplied) 1: 12kOhm 2: 15kOhm 3: 47kOhm	0
  3.	Max guard temperature	20-95°C --: No limit	27°C
  4.	Hysteresis	1-9°C	2°C
  5.	Calibration	-9 to +9°C	0°C
  6.	Highest set point	35-90°C	35°C
  7.	Lowest set point	0-30°C	5°C
  8.	Home mode set point**		22°C
  9.	Away mode set point		15°C
  10.	Display’s brightness in sleep mode	1-10	1
  11.	Open window detection	0 - disabled 1 - enabled	1
  12.	Restart thermostat	Select == and wait 5 seconds	=
  13.	Factory reset	Select == and wait 5 seconds	=

  *Max guard regulates based on air temperature, but has a maximum limit on the floor sensor. It is suitable, for example, for wooden floors.

  **Home mode is a mode on the thermostat, not in the app, and must not be mixed.

Modes

Note: these are the thermostat’s own modes, different from the Futurehome ones.

• heat - recommended, follows your commands, modes, shortcuts and automations
• home - sets the temp to default 22°C, editable in advanced settings
• eco away - sets the temp to default 15°C, editable in advanced settings
• sleep - sets the temp to 18°C
• auto - a built-in weekly program, not recommended for most people, use heat mode instead

Technical details
