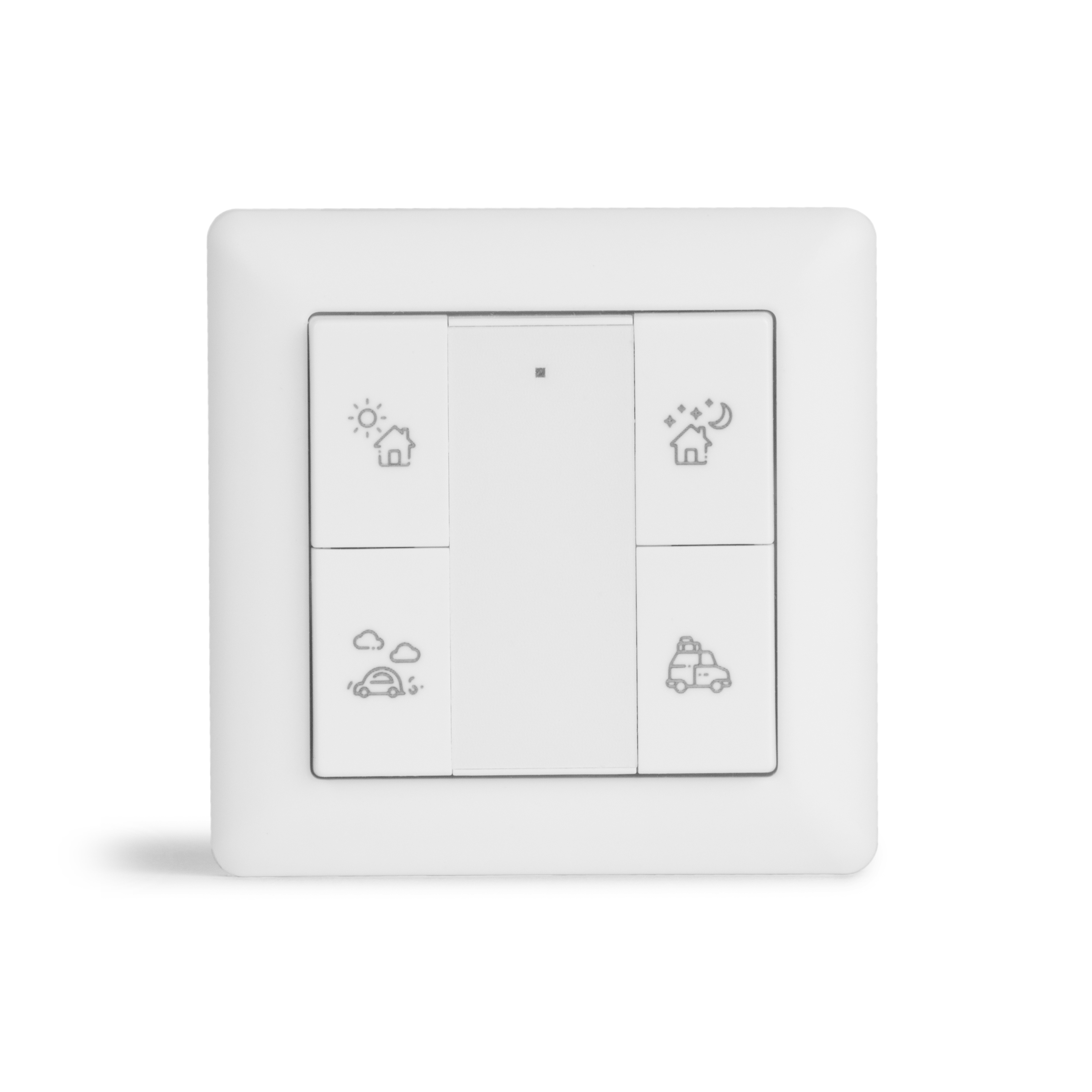

Futurehome Modeswitch (white)

Introduction

Futurehome Modeswitch is a wall switch that enables quick control of the Futurehome modes. You can learn more about modes here.

Inclusion

1. Open the app → settings  → devices → add new device → Z-Wave → select “include known devices faster” → start.
2. Hold down both upper buttons for 3 seconds. The LED indicator should turn on and blink 6 times after a successful inclusion.

3. The Modeswitch is now at the bottom of your device list → select it →  settings → give it a name and a room.

Factory reset

Hold down both upper buttons for 10 seconds. The LED indicator should turn on and blink 4 times after a successful factory reset.

Technical details

Documents

• FH-Modeswitch.pdf3 MB
