Futurehome Socket (black)

Introduction

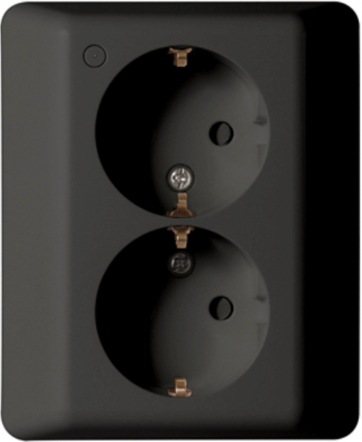

The Futurehome Smart Socket is a double schuko socket where one outlet can be controlled either wirelessly or with the push-button. It is customised for Norwegian wall boxes and installation systems, which makes it easy to upgrade from conventional power sockets to a smart solution.

Installation guide

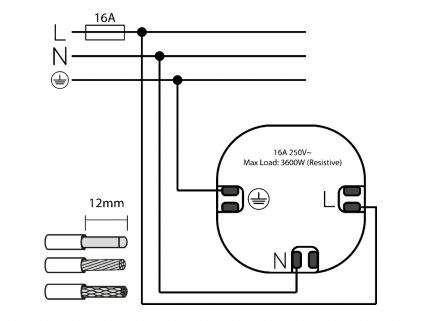

1. Install the socket according to the wiring diagram.

2. In the Futurehome app, go to settings  → devices → add device → Zigbee → start.
3. Press and hold the button on the socket for 5 seconds. When you release it, the button should flash blue.
4. When the app finds the device, press “Ok, done”
5. Click on the socket in the device list and then press  settings.
6. Give the socket a name, and the correct function and place it in a room → save.

Reset

To reset the device, press and hold the pairing button on the device for 5 seconds.

Technical details

Documents

• Futurehome-Stikkontakt - datablad.pdf500 KB
