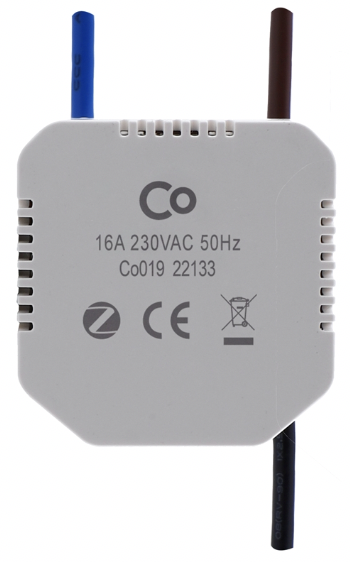

Futurehome 16A Relay

  • Updated


Introduction

Futurehome Smart relay for concealed installation is a relay that can control resistive loads up to 16A. Typical applications are control of water heaters, permanently connected panel heaters, and heating cables. In this way, large costs can be saved by avoiding "rush hour" prices on the power grid. Hot water and electric heat sources are controlled according to rules based on electricity price or time of day / calendar.

Manufacturer Futurehome AS
EL number 4500721
Suppliers item number Co019
ETIM Class EC001588 - Electronic Switch

Installation guide

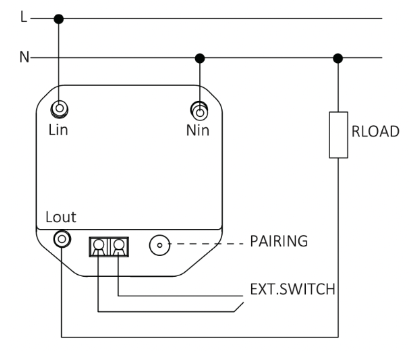

  1. Install the relay according to the wiring diagram.
  2. In the Futurehome app, go to settings → devices → add device → Zigbee → start.
  3. Press and hold the pairing button on the relay for 5 seconds. When you release, the button should flash blue.
  4. When the app finds the device, press “Ok, done”
  5. Click on the relay in the device list and then press “Settings”.
  6. Give the relay a name, the correct function and place it in a room → save.

Factory reset

To factory reset, press and hold the pairing button on the device (or the external switch) for 5 seconds.

Technical details

Load 16 A
Effect 3600 W
Voltage 230 V AC
Height (mm) 47,5
Width (mm) 46
Depth (mm) 25
Communication Zigbee 3.0
IP IP20 (indoors)
