Futurehome Water Leak Sensor

  • Updated

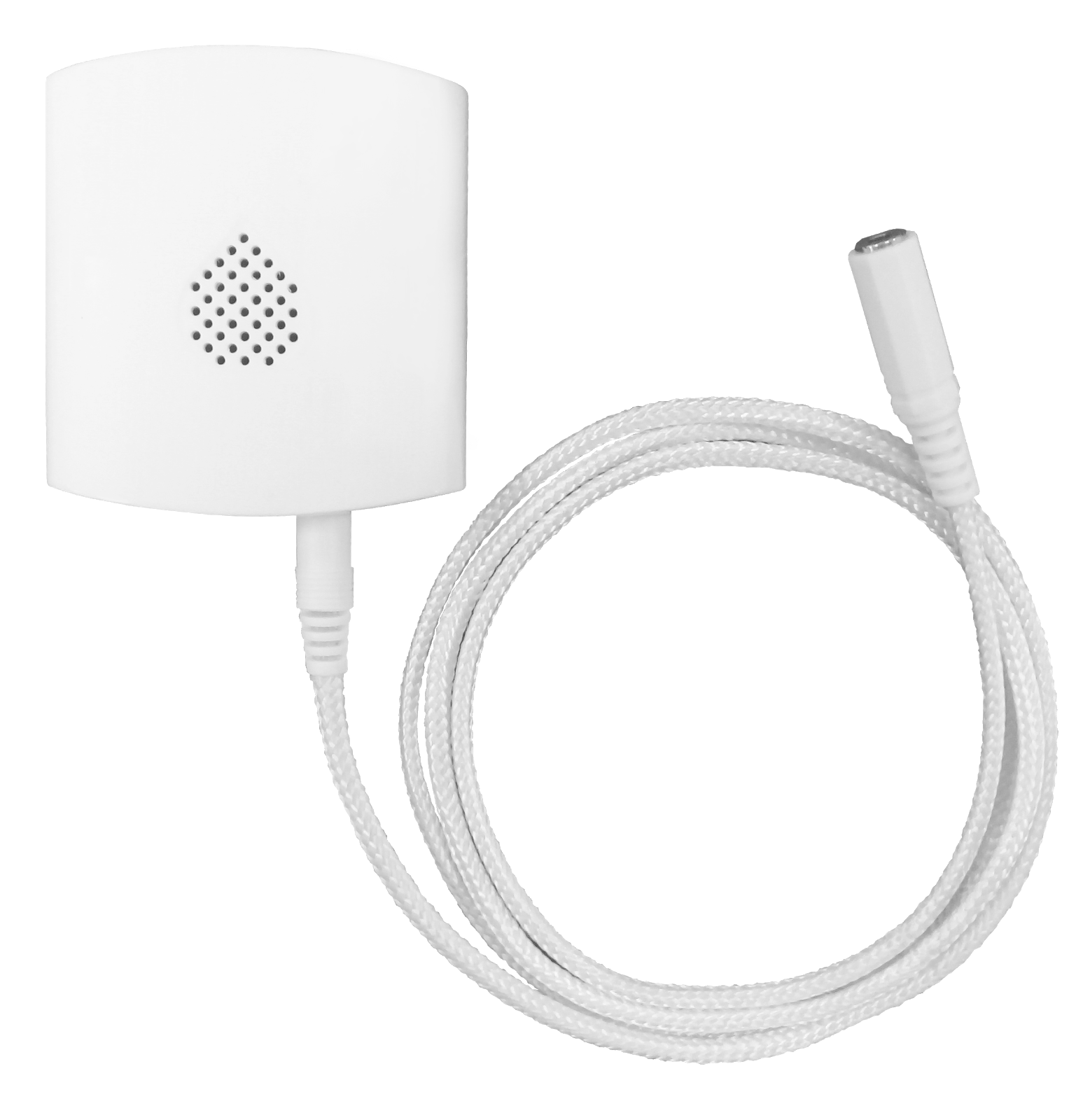

The water leakage sensor is designed to detect leakage and notify about it with an alarm. The device works wirelessly. It can be mounted on the wall or ground deployed.

Manufacturer Futurehome
EL number 6200154
Suppliers item number WLS-23ZW
ETIM Class EC000926 - Physical sensor for bus system

Installation guide

  1. Install the sensor according to your preferences:
    • mount on a wall - use a sensor cable
    • place on the floor - use built-in sensors and optionally an external sensor cable
  2. Open the Futurehome app, go to settings settings.svg → devices → add a device → Z-Wave.
  3. Select "secure inclusion" and "include known devices faster" → start.
  4. Press the function button (”Learn” button on the back) 3 times within 1.5 seconds.
  5. After inclusion, select the device in the device list → press setup.svg settings.
  6. Give the sensor a name, the correct function and place it in a room → save.

Additional info

  1. Factory reset:
    Press and hold the function button for more than 10 seconds.
  2. Turning off the alarm:
    Press the function (Learn) button once.

Technical details

Power Source 3V, CR123 Lithium battery x 1
Height 74
Width 68
Depth 25
Communication Z-Wave
