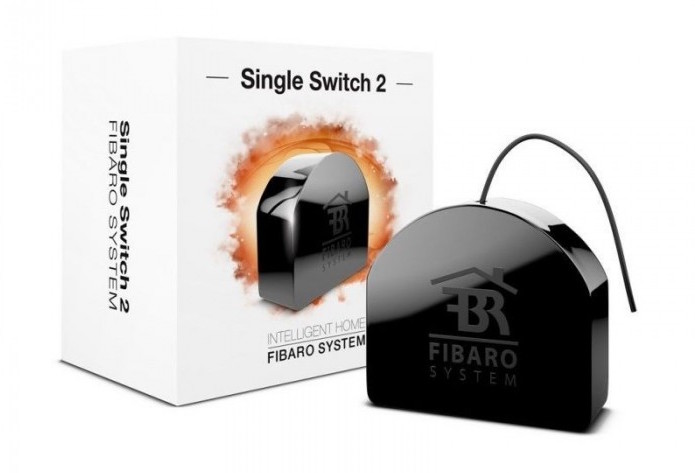

Fibaro Single Switch 2

Introduction

Fibaro Switch 2 is designed to be installed in a standard wall box or anywhere you need to control an on/off circuit. The device lets you control devices either via switch or Futurehome app. The unit measures power consumption.

Installation guide

Note: Installation must be done by a certified electrician. The unit has current-carrying components when the load is switched off. All maintenance must be carried out on an isolated course.

1. Isolate the circuit by turning off the fuse.

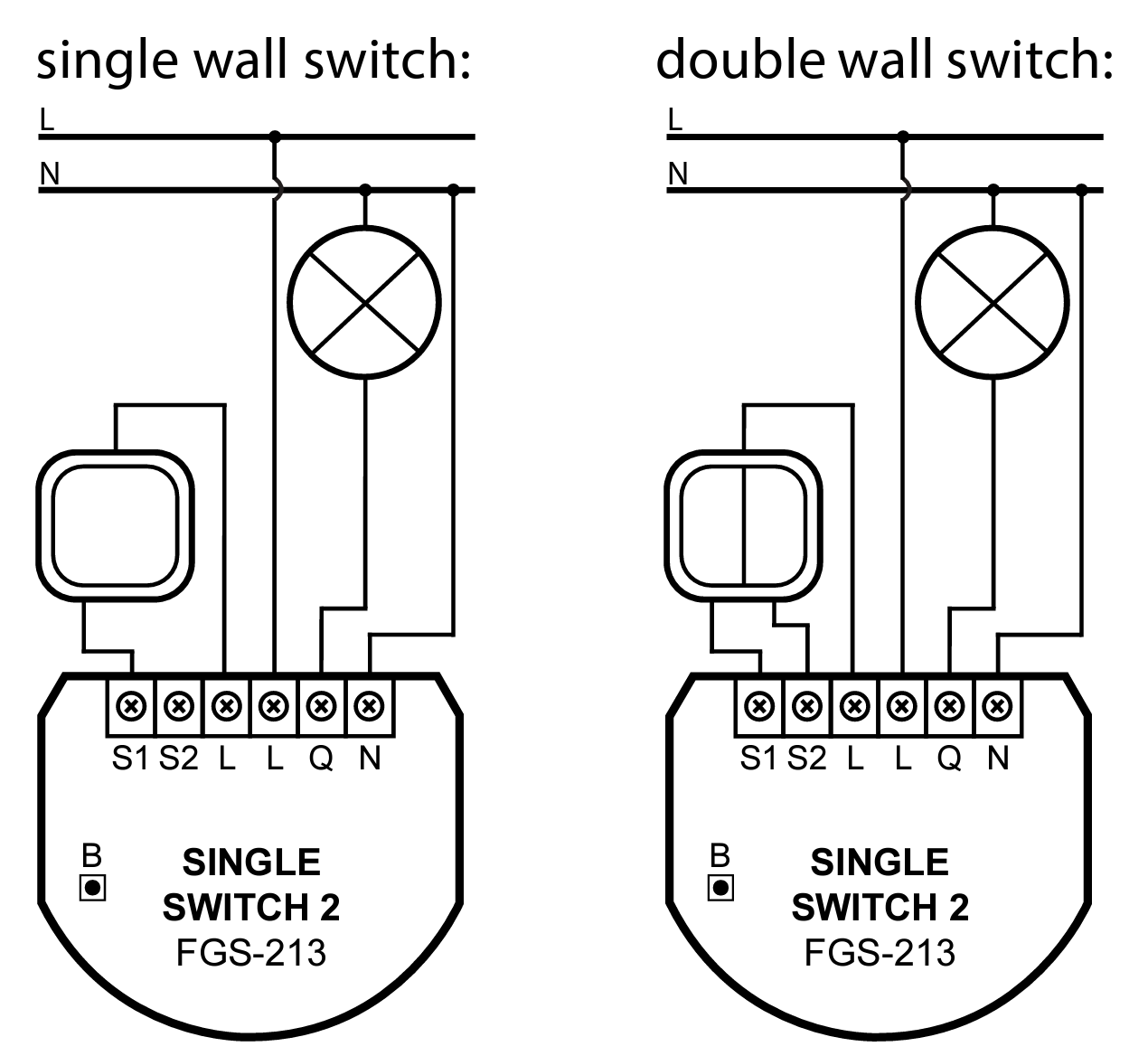

2. Install the switch according to the wiring diagram.

3. Turn on the voltage to the switch.
4. Open the Futurehome app, go to settings → devices → add a device → Z-Wave.
5. Select "force non-secure inclusion" and "include known devices faster". (If the device does not work properly, try without "include known devices faster" checked.)
6. Press the "B" button or the connected switch on the S1 input 3 times within 1.5 seconds.
7. “Device found, configuring” should appear.
8. After inclusion, find the switch in the device list and press settings.
9. Give the switch a name, the correct function and place it in a room → save.
   Make sure to use the correct channels. Read more below.

Additional information

Channels

Fibaro Single Switch has 3 channels:

• channel 0: the device itself, must be left without functionality
• channel 1: used in the app for controlling the connected load (i.e. light)
• channel 2: the S2 input on the device, used for the associations (if you have a switch connected to S2)

You can learn more about channels here.

Factory reset

1. Using the switch:
   Press and hold the B button until the LED lights up yellow → release and quickly press once again → after a few seconds the LED should light up red.
2. Using the app:
   Start Z-Wave exclusion (settings → devices → remove device) → press the B button or connected light switch 3 times within 1.5 seconds.

Technical details

Documents

• FGS-2x3-EN-T-v1.1.pdf800 KB
