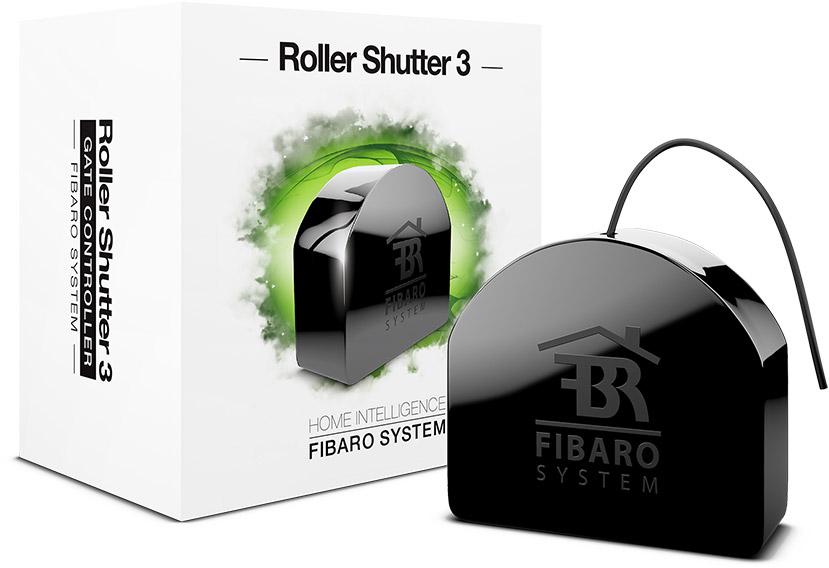

Fibaro Roller Shutter 3

  • Updated



Fibaro Roller Shutter is used for motor control of blinds, awnings, screens, roller blinds, grilles, gates and slats.

Manufacturer Fibaro
EL number 4512449
Suppliers item number 4512449
ETIM Class EC000792 - Bus system - actuator

Installation guide

Note: Installation must be done by a certified electrician. The unit has current-carrying components when the load is switched off. All maintenance must be carried out on an isolated course.

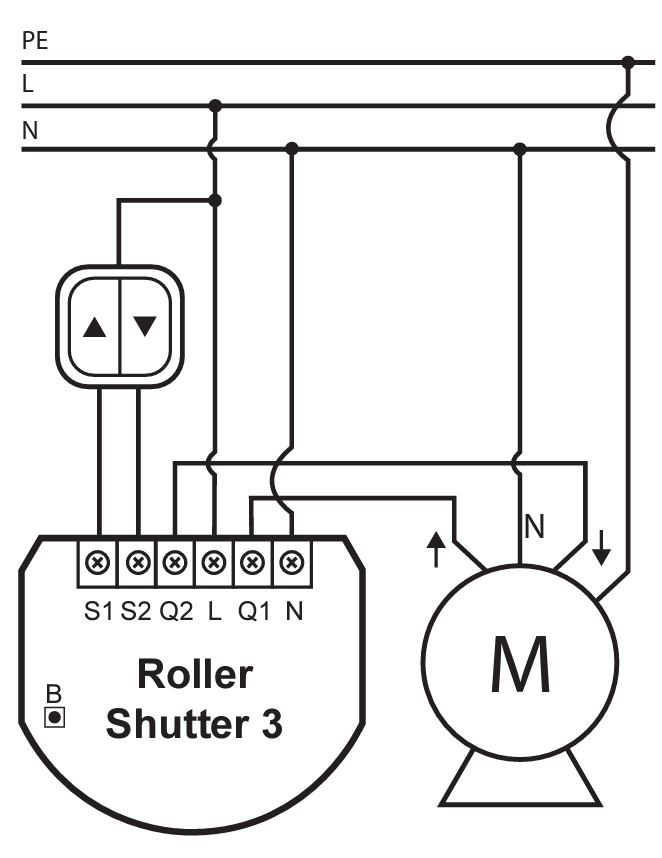

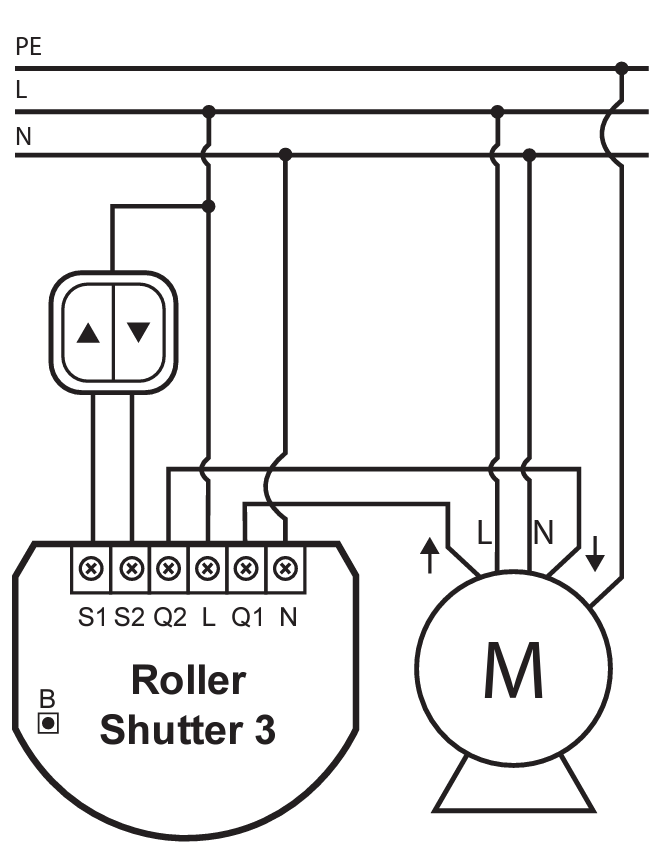

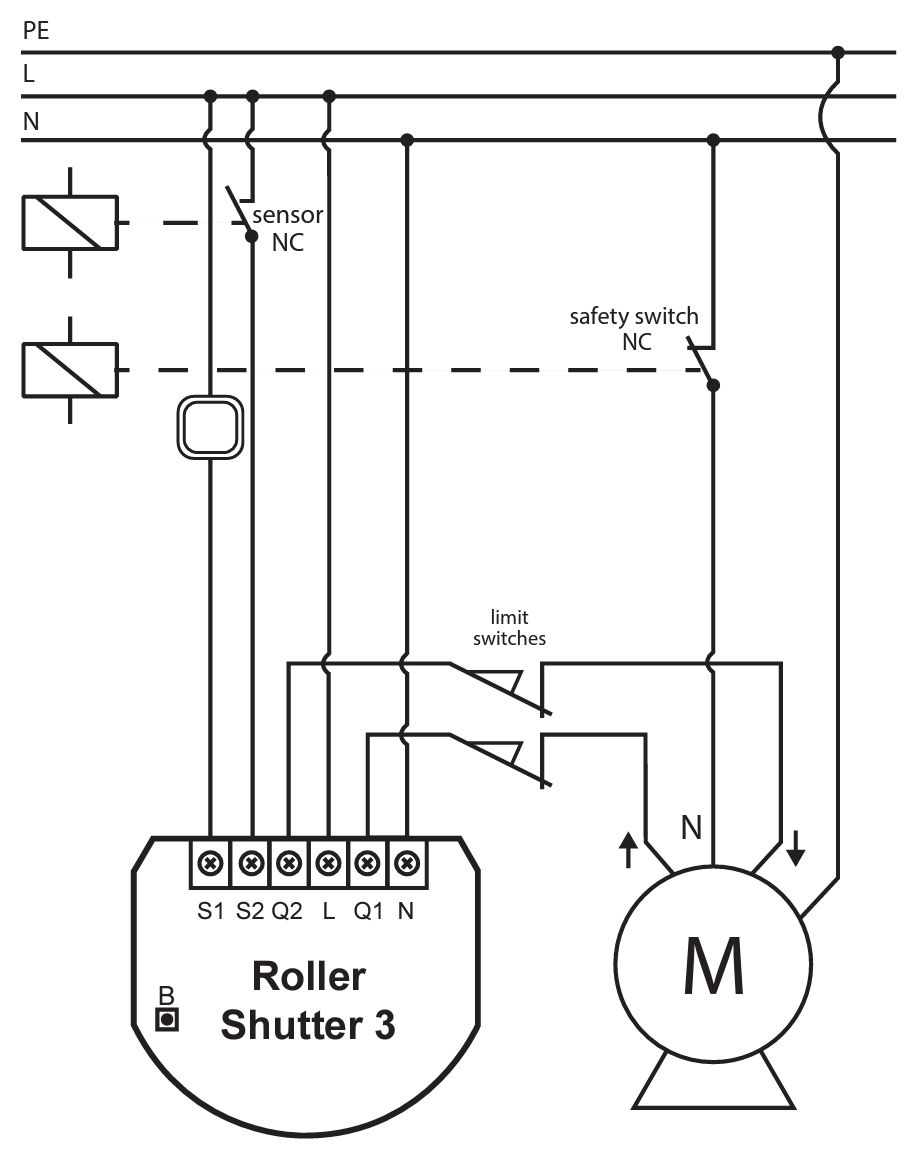

  1. Install the dimmer according to the wiring diagram.

S1 S2 Q2 L Q1 N B
Terminal for 1st switch (used to add/remove the device) Terminal for 2nd switch 2nd output terminal for shutter motor Terminal for live lead 1st output terminal for shutter motor Terminal for neutral lead Service button (used to add/remove the device and navigate the menu)
  • Screenshot
  • Screenshot
  • Screenshot
  1. Turn on the voltage to the device.
  2. Open the Futurehome app, go to settings → devices → add a device → Z-Wave.
  3. Start the inclusion on the device according to the device’s manual.
  4. After inclusion, find the device in the device list and press “settings”.
  5. Give it a name, the correct function and place it in a room → save.

Before the motor can be controlled, the motor and the Fibaro device must be calibrated. Read more below.

Additional information


  1. Put the screen, awning or the like in the lowered or unfolded position.
  2. Open the app → settings settings.svg → devices → shutter → Z-wave parameters.
  3. Set the parameter by entering the following numbers:
    • parameter: 150
    • length: 1
    • value: 2
  4. Set.
  5. The screen will move from bottom to top, back down and up again then stop.

Factory reset

  1. Using the roller shutter:
    Press and hold the B button until the LED lights up yellow → release and quickly press once again → after a few seconds the LED should light up red.
  2. Using the app:
    Start Z-Wave exclusion (settings → devices → remove device) → press the B button or connected light switch 3 times within 1.5 seconds.

Technical details

Power supply 100-240V
Power consumption up to 0.8W
Height 38.25
Width 42.5
Depth 20.3
Communication Z-Wave


Fibaro Roller Shutter 3 manual
